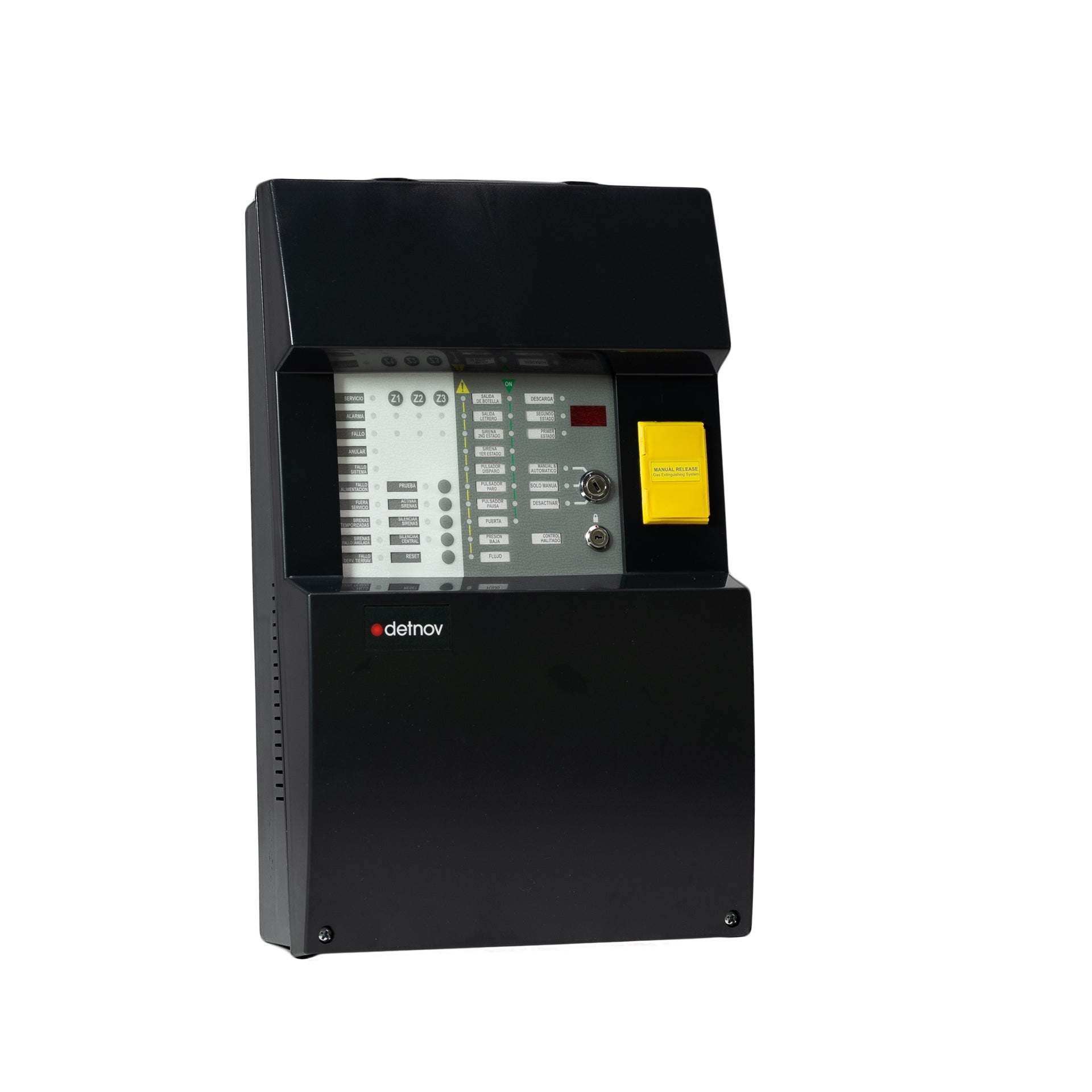

CCD-103 Πίνακας Πυρανίχνευσης – Κατάσβεσης 3 Ζωνών Detnov

Features
• 3 conventional detection zones and a risk of extinction
• 1 monitored sounder output
• PCB sounder delay configuration
• Bottle activation output and indicator light activation output
• 2 inputs for monitoring the bottle, pressure and flow
• Manual call points inputs: activate, abort and stop extinguishing
• 2 sounder outputs for the two possible states of the extinguishing process
• Configurable extinguishing activation delay
• Extinguishing block operating modes: manual, automatic and canceled
• 2 inputs for enclosure monitoring: door and ventilation
• 500 event history log
• Multilingual keyboard
• Optional card for integration into the loop of Detnov’s CAD-150 addressable system
• Configuracion software
